Meteor75 Pro FPV Kit

The Meteor75 Pro FPV Kit brings together the legendary Meteor75 Pro whoop, VR03 goggles, LiteRadio 2 SE transmitter with a portable carry bag – everything you need to dive into immersive FPV flying right out of the box. As the more advanced 1S analog ready‑to‑fly package, this kit delivers exceptional performance and durability, giving you the confidence to explore both indoor and outdoor environments with ease. Whether you’re a novice or a seasoned pilot, the Meteor75 Pro FPV Kit is your perfect gateway to the thrill of FPV.

Bullet Points

• Largest & Most Powerful 1S Whoop: 80.8mm wheelbase, 1102 22000KV motors, and LAVA II 580mAh battery deliver excellent thrust‑to‑weight ratio for agile indoor/outdoor flight.
• All‑in‑One Ready‑to‑Fly Kit: Includes Meteor75 Pro drone, VR03 goggles, LiteRadio 2 SE radio transmitter, and a portable carry bag.
• VR03 Goggles: Feature a replaceable high‑quality 5.8G 3dBi omnidirectional antenna and a 4.3‑inch 800×480 high‑brightness LCD for clear, stable video recording during flight.
• LiteRadio 2 SE: Ergonomic game‑controller design with a built‑in 1000mAh battery delivering up to 8 hours of use on a single charge.
• Built for Durability & Portability: Rugged whoop frame and included carry bag make it easy to take anywhere and survive inevitable crashes.

Specifications

• Quadcopter: Meteor75 Pro
• Goggles: VR03
• Radio Transmitter: LiteRadio 2 SE
• Video Transmitter: Onboard 5.8GHz 48 channels
• Video Transmission Power and Range: 400mW and 400m
• Camera: C03
• Camera Angle Adjustment: 20°/ 30°
• Flight Controller: Matrix 1S 5IN1

• Motors: 1102 22000KV Motor
• Frame: Meteor75 Pro Brushless Whoop Frame
• Propellers: Gemfan 45mm 3-Blade Propellers
• Battery: LAVA II 1S 580mAh Battery
• Battery Connector: BT2.0
• Battery Charger: BT2.0 1S Battery Charger and Voltage Tester
• Wheelbase: 80.8mm
• Receiver: Integrated Serial ELRS 2.4GHz 3.0

• Flight time: 6 minutes
• Takeoff Weight: 45g

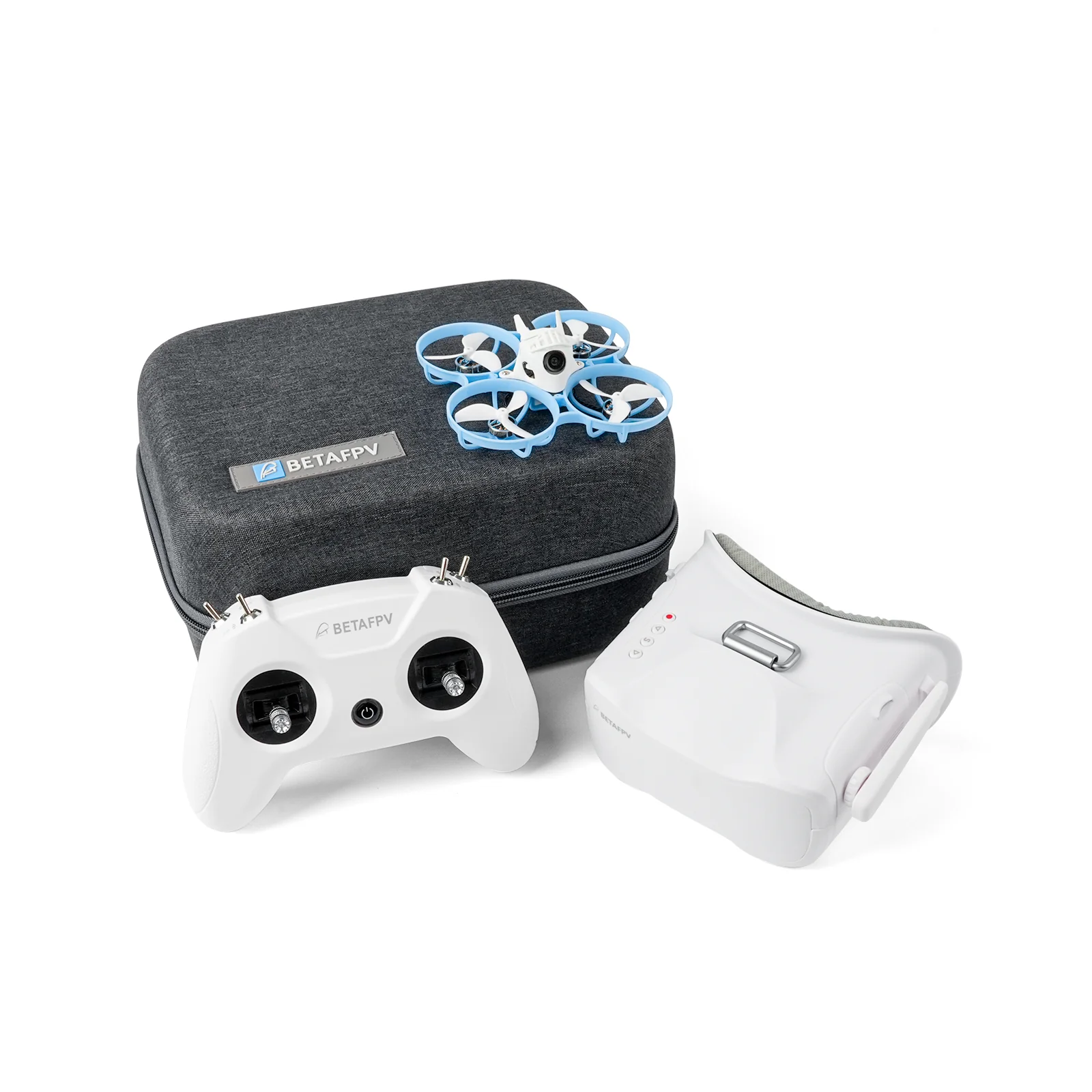

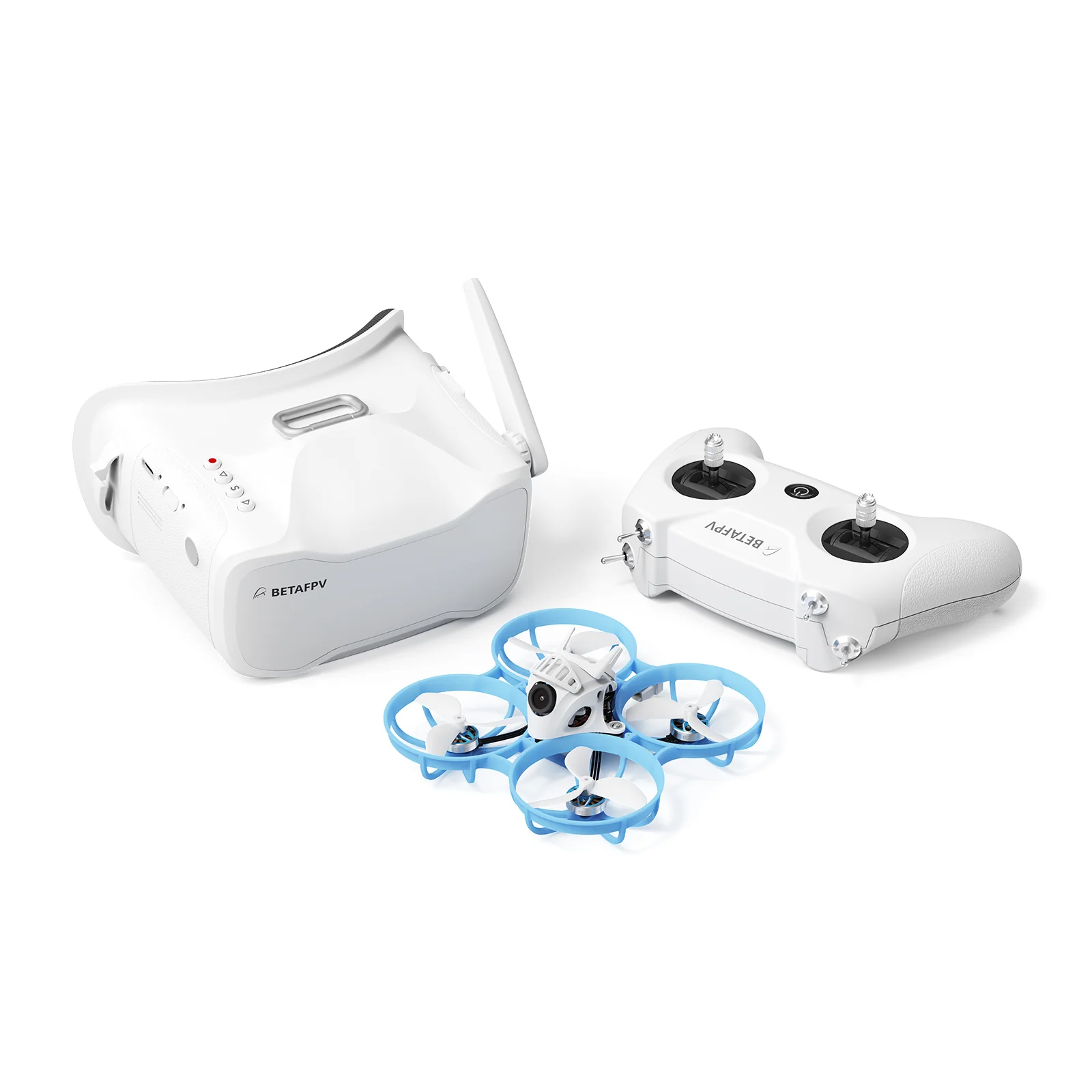

Complete Kit, Portable & Ready to Fly

This all-in-one kit includes the robust Meteor75 Pro P1 whoop, VR03 goggles, and LiteRadio 2 SE radio transmitter—everything you need to start flying FPV immediately. Additionally, a custom portable bag is included for safe transport to the field, races, or vacations. Simply unbox and take to the skies in minutes.

Largest & Powerful 1S Whoop

With an 80.8mm wheelbase, the Meteor75 Pro is the largest and most powerful 1S whoop. It boasts precise, agile flight dynamics, powered by 1102 22000KV motors and the LAVA II 1S 580mAh battery. This combination provides an excellent thrust-to-weight ratio, allowing for powerful climbs, tight turns, and flight times of up to 6 minutes—ideal for both indoor cruising and outdoor freestyle maneuvers.

VR03 FPV Goggles

The VR03 goggles come with a replaceable high‑quality 5.8G 3dBi omnidirectional antenna that receives signals equally from all horizontal directions, ensuring stable video transmission and vivid images during flight. A 4.3‑inch 800×480 high‑brightness LCD delivers a bright, warp‑free image specifically tuned for FPV racing. Record your flights directly to a microSD card and replay footage right on the goggles. The classic, ergonomic design features a foam sponge faceplate and a three‑sided adjustable headband for a secure, comfortable fit. At just 300g, these compact goggles are lightweight and easy to carry wherever you fly.

LiteRadio 2 SE Radio Transmitter

The LiteRadio 2 SE features an ergonomic, game‑controller shape that fits comfortably in your hands. Powered by a built‑in 1000mAh 1S battery, it delivers up to 8 hours of continuous use for excellent endurance. With 100mW transmitting power, it offers a wide operating range for reliable control. The transmitter supports popular FPV simulators including VelociDrone, Liftoff, TRYP, DRL, DCL, and DJI Virtual Flight, and is compatible with desktops, Android devices, and tablets – making it easy to practice and sharpen your skills anytime, anywhere.

HD Digital VTX vs. Analog VTX

The Meteor75 Pro HD kit is equipped with the P1 Air Unit HD VTX and a digital‑ready Matrix 3IN1 FC, paired with the VR04 HD goggles and LiteRadio 4 SE for a smooth HD flight experience. The Meteor75 Pro analog kit comes with the Matrix 5IN1 FC and analog VTX, paired with the VR03 goggles and LiteRadio 2 SE. Both kits share the same powerful propulsion system: 1102 22000KV motors, GF 45mm 3‑blade propellers, and the new LAVA II 1S 580mAh battery. Choose the video system that suits you best.

	Meteor75 Pro HD FPV Kit	Meteor75 Pro FPV Kit
Goggles	VR04 HD	VR03
Radio Transmitter	LiteRadio 4 SE	LiteRadio 2 SE
VTX	P1 Air Unit	Onboard 5.8GHz 48 channels
VTX Power & Range	200mW and 400m	400mW and 400m
Camera	P1 VTX camera	C03
Camera Tilt	10°- 30°	20°/ 30°
FC	Matrix 1S 3IN1	Matrix 1S 5IN1
Frame	Transparent Gray Meteor75 Pro Frame	Blue Meteor75 Pro Frame
Wheelbase	80.8mm
Motors	1102|22000KV Motors
Props	GF 45mm 3-Blade
Battery	LAVA II 1S 580mAh Battery
Battery Connector	BT2.0
Battery Charger	BT2.0 1S Battery Charger and Voltage Tester
RX	Serial ExpressLRS 2.4G 3.0
Flight Time	5.5min	6min
Takeoff Weight	51.5g	45g

Know More About ArtLynk Protocol

The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

• Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
• Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.

The ArtLynk protocol supports the following devices, letting you customize your own build or simply bind and fly:

• BETAFPV VR04 HD goggles, Aquila20 P1, Meteor75 Pro P1
• HGLRC Draco
• More coming soon!

Firmware Compatibility Notes:

1. To ensure seamless compatibility with third-party ArtLynk protocol equipments (such as HGLRC Draco), please verify that your BETAFPV devices are updated to firmware version V2.0.5 or later.
2. The air unit needs to be updated via the ground station. First make sure the ground station and air unit are on the same firmware version, then proceed to update the air unit. And firmware V2.0.5 is not compatible with any V1 versions (V1.0.36 / V1.0.44).

Ground Station	Air Unit	Actions Required
V1	V1	Update both to V2
V1	V2	Update ground station to V2
V2	V1	Downgrade ground station to V1, then update both to V2
V2	V2	Ready to use

Click to see how to update the firmware.

Recommended Parts

• Quadcopter: Meteor75 Pro
• Radio Transmitter: LiteRadio 4, LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
• Goggles: VR04 FPV Goggles
• Camera: C03
• FC: Matrix 1S 5IN1, Matrix 1S 5IN1 II
• Battery: LAVA II 1S 480mAh/580mAh/680mAh Battery, BT2.0 550mAh Battery, BT2.0 450mAh Battery
• Props: Gemfan 45mm 3-Blade Propellers (1.5mm Shaft 4PCS)

• Frame: Meteor75 Pro Brushless Whoop Frame

• Canopy: Canopy for Micro Camera 2022

• Charger: BT2.0 1S Battery Charger and Voltage Tester, HexaCharger, 6 Ports 1S Battery Charger & Adapter
• Screws: Drone Screw Pack, Meteor Series Motor Fixing Screws Pack (40PCS)

File

• Download the FC firmware and CLI dump file for Meteor75 Pro FPV Kit
• User Manual for Meteor75 Pro whoop
• User Manual for VR03 FPV Goggles
• User Manual for LiteRadio 2 SE Radio Transmitter

Package

• 1 * Meteor75 Pro Brushless Whoop Quadcopter
• 1 * LiteRadio 2 SE Radio Transmitter
• 1 * VR03 FPV Goggles
• 2 * LAVA II 1S 580mAh Battery
• 1 * BT2.0 1S Battery Charger and Voltage Tester
• 1 * USB-C Cable

• 1 * USB-C Adapter
• 1 * 4Pin Adapter Cable
• 4 * Gemfan 45mm 3-Blade Props (1.5mm Shaft)
• 1 * Spare Frame
• 1 * Accessories for Canopy

• 1 * Cross Screwdriver
• 1 * Portable Storage Bag
• 1 * User Manual for Meteor75 Pro
• 1 * User Manual for Goggles
• 1 * User Manual for Radio Transmitter
