Meteor75 Pro HD FPV Kit

The Meteor75 Pro HD FPV Kit is the more advanced 1S ready‑to‑fly package, coming fully equipped with the Meteor75 Pro P1 whoop, VR04 HD goggles, LiteRadio 4 SE radio transmitter, and a portable carry bag – everything you need to dive into immersive HD FPV flying right out of the box. The powerful yet compact HD whoop drone features the advanced P1 Air Unit HD VTX, delivering stunning 1080p digital video, smooth 60ms low‑latency transmission, and an impressive range of up to 400 meters. Whether you're a novice or a seasoned pilot, this kit offers exceptional performance, durability, and clarity – giving you the confidence to explore both indoor and outdoor environments with ease.

Bullet Points

• HD Digital Video: Equipped with the P1 Air Unit VTX for 1080p/60fps smooth, low‑latency (~60ms) transmission up to 400m.
• Largest & Most Powerful 1S Whoop: 80.8mm wheelbase, 1102 22000KV motors, and LAVA II 580mAh battery deliver excellent thrust‑to‑weight ratio for agile indoor/outdoor flight.
• All‑in‑One Ready‑to‑Fly Kit: Includes Meteor75 Pro P1 drone, VR04 HD goggles, LiteRadio 4 SE radio transmitter, and a portable carry bag.
• Comfortable VR04 HD Goggles: Glasses‑friendly design, contoured padding, 2600mAh batteries (3‑hour runtime), and one‑button 1080p recording to microSD card.
• LiteRadio 4 SE Radio Transmitter: 8‑channel, smooth gimbal, Bluetooth for simulator training, and 2000mAh battery with 8+ hours of use.
• Built for Durability & Portability: Rugged whoop frame and included carry bag make it easy to take anywhere and survive inevitable crashes.

Specifications

• Quadcopter: Meteor75 Pro P1
• Goggles: VR04 HD
• Radio Transmitter: LiteRadio 4 SE
• Video Transmitter: P1 Air Unit
• Video Transmission Power and Range: 200mW and 400m
• Camera: P1 VTX camera
• Camera Tilt: 10° - 30°
• Flight Controller: Matrix 1S 3IN1

• Motors: 1102 22000KV Motor
• Frame: Meteor75 Pro Brushless Whoop Frame
• Propellers: Gemfan 45mm 3-Blade Propellers
• Battery: LAVA II 1S 580mAh Battery
• Battery Connector: BT2.0
• Battery Charger: BT2.0 1S Battery Charger and Voltage Tester
• Wheelbase: 80.8mm
• Receiver: Integrated Serial ELRS 2.4GHz 3.0

• Flight time: 5.5 minutes
• Takeoff Weight: 51.5g

P1 Air Unit HD VTX

The Meteor75 Pro HD FPV Kit features the advanced P1 Air Unit HD VTX, which provides crisp 1080p digital video with a powerful 200mW output and a reliable range of 400 meters. Enjoy a smooth flying experience with a low latency of approximately 60ms, ensuring stable, static-free HD video for confident exploration and an immersive FPV experience.

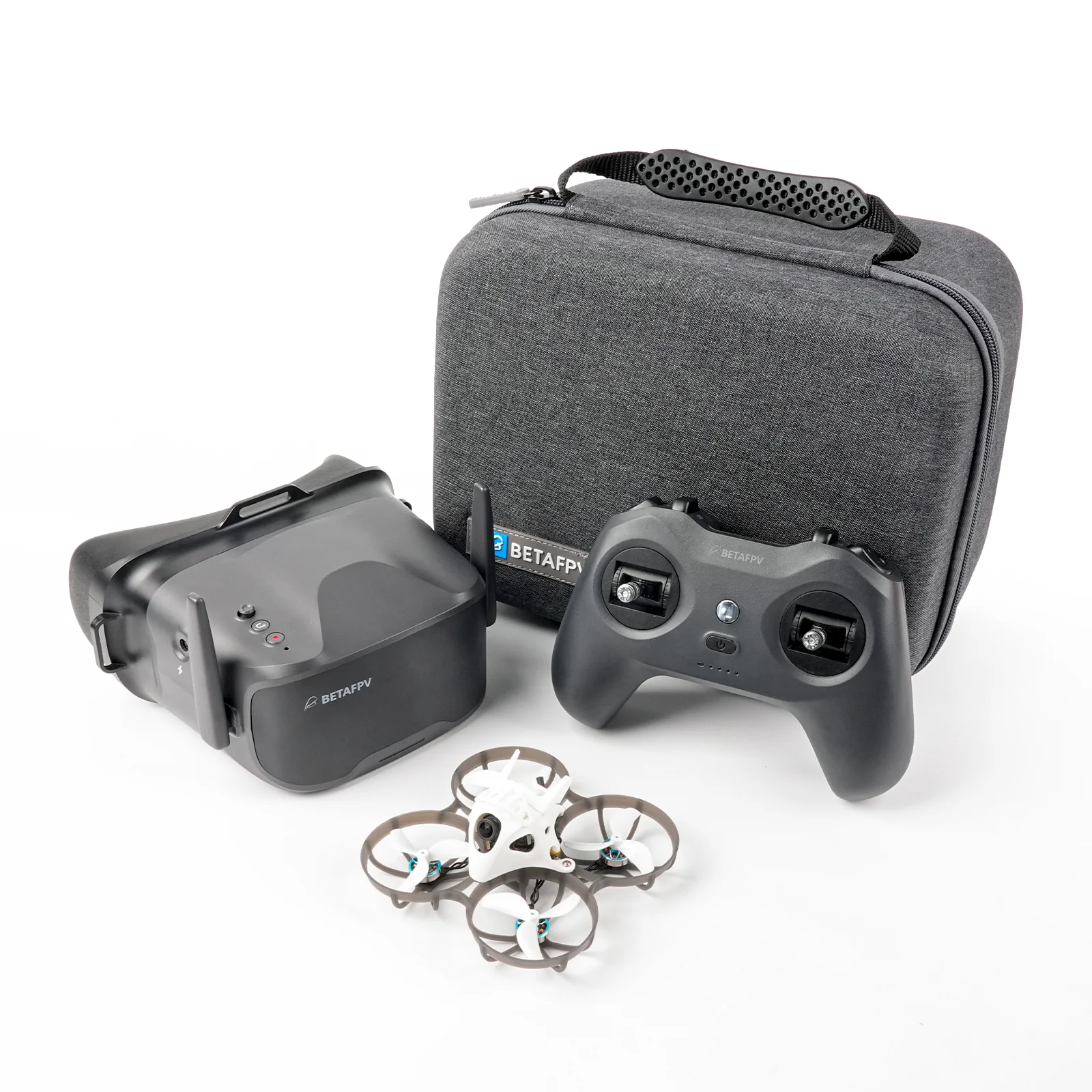

Complete Kit, Portable & Ready to Fly

This all-in-one kit includes the robust Meteor75 Pro P1 whoop, VR04 HD goggles, and LiteRadio 4 SE radio transmitter—everything you need to start flying FPV immediately. Additionally, a custom portable bag is included for safe transport to the field, races, or vacations. Simply unbox and take to the skies in minutes.

Largest & Powerful 1S HD Whoop

With an 80.8mm wheelbase, the Meteor75 Pro P1 is the largest and most powerful 1S HD whoop on the market. It boasts precise, agile flight dynamics, powered by 1102 22000KV motors and the LAVA II 1S 580mAh battery. This combination provides an excellent thrust-to-weight ratio, allowing for powerful climbs, tight turns, and flight times of up to 5.5 minutes—ideal for both indoor cruising and outdoor freestyle maneuvers.

VR04 HD FPV Goggles

Designed for total immersion and comfort, the VR04 HD goggles feature a glasses-friendly design with ample space, so you never have to remove your eyewear. Enhanced with contoured face padding and a soft rubber nose bridge, they block outside light effectively while fitting securely for longer, more focused sessions. The 2600mAh batteries provide up to 3 hours of standby time, while one-button recording lets you effortlessly capture HD footage directly to a microSD card. Relive your flights in crystal-clear detail—every moment preserved with professional quality.

LiteRadio 4 SE Radio Transmitter

The included LiteRadio 4 SE Radio Transmitter offers 8-channel operation in an ultra-portable package perfect for new pilots, delivering razor-sharp control when you're flying drones. Its advanced-coated gimbal delivers silky-smooth, durable operation, paired with Bluetooth wireless modes for seamless simulator training across PCs, tablets, and mobile devices. Built for endurance, the 1S 2000mAh battery powers 8+ hours (at 25mW) of flight or practice and recharges fully in 40 minutes via 15W fast charging.

HD Digital VTX vs. Analog VTX

The Meteor75 Pro HD kit is equipped with the P1 Air Unit HD VTX and a digital‑ready Matrix 3IN1 FC, paired with the VR04 HD goggles and LiteRadio 4 SE for a smooth HD flight experience. The Meteor75 Pro analog kit comes with the Matrix 5IN1 FC and analog VTX, paired with the VR03 goggles and LiteRadio 2 SE. Both kits share the same powerful propulsion system: 1102 22000KV motors, GF 45mm 3‑blade propellers, and the new LAVA II 1S 580mAh battery. Choose the video system that suits you best.

	Meteor75 Pro HD FPV Kit	Meteor75 Pro FPV Kit
Goggles	VR04 HD	VR03
Radio Transmitter	LiteRadio 4 SE	LiteRadio 2 SE
VTX	P1 Air Unit	Onboard 5.8GHz 48 channels
VTX Power & Range	200mW and 400m	400mW and 400m
Camera	P1 VTX camera	C03
Camera Tilt	10°- 30°	20°/ 30°
FC	Matrix 1S 3IN1	Matrix 1S 5IN1
Frame	Transparent Gray Meteor75 Pro Frame	Blue Meteor75 Pro Frame
Wheelbase	80.8mm
Motors	1102|22000KV Motors
Props	GF 45mm 3-Blade
Battery	LAVA II 1S 580mAh Battery
Battery Connector	BT2.0
Battery Charger	BT2.0 1S Battery Charger and Voltage Tester
RX	Serial ExpressLRS 2.4G 3.0
Flight Time	5.5min	6min
Takeoff Weight	51.5g	45g

Know More About ArtLynk Protocol

The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

• Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
• Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.

The ArtLynk protocol supports the following devices, letting you customize your own build or simply bind and fly:

• BETAFPV VR04 HD goggles, Aquila20 P1, Meteor75 Pro P1
• HGLRC Draco
• More coming soon!

Firmware Compatibility Notes:

1. To ensure seamless compatibility with third-party ArtLynk protocol equipments (such as HGLRC Draco), please verify that your BETAFPV devices are updated to firmware version V2.0.5 or later.
2. The air unit needs to be updated via the ground station. First make sure the ground station and air unit are on the same firmware version, then proceed to update the air unit. And firmware V2.0.5 is not compatible with any V1 versions (V1.0.36 / V1.0.44).

Ground Station	Air Unit	Actions Required
V1	V1	Update both to V2
V1	V2	Update ground station to V2
V2	V1	Downgrade ground station to V1, then update both to V2
V2	V2	Ready to use

Click to see how to update the firmware.

Recommended Parts

• Quadcopter: Meteor75 Pro P1
• Radio Transmitter: LiteRadio 4, LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
• Goggles: VR04 HD FPV Goggles
• VTX: P1 Air Unit
• FC: Matrix 1S 3IN1
• Battery: LAVA II 1S 480mAh/580mAh/680mAh Battery, BT2.0 550mAh Battery, BT2.0 450mAh Battery
• Motors: 1102|22000KV Motors
• Props: Gemfan 45mm 3-Blade Propellers (1.5mm Shaft 4PCS)

• Frame: Meteor75 Pro Brushless Whoop Frame

• Canopy: Canopy for Micro Camera 2022

• Charger: BT2.0 1S Battery Charger and Voltage Tester, HexaCharger, 6 Ports 1S Battery Charger & Adapter
• Screws: Drone Screw Pack, Meteor Series Motor Fixing Screws Pack (40PCS)

File

• Download the FC firmware and CLI dump file for Meteor75 Pro HD FPV Kit
• User Manual for Meteor75 Pro P1 whoop
• User Manual for VR04 HD FPV Goggles
• User Manual for LiteRadio 4 SE Radio Transmitter

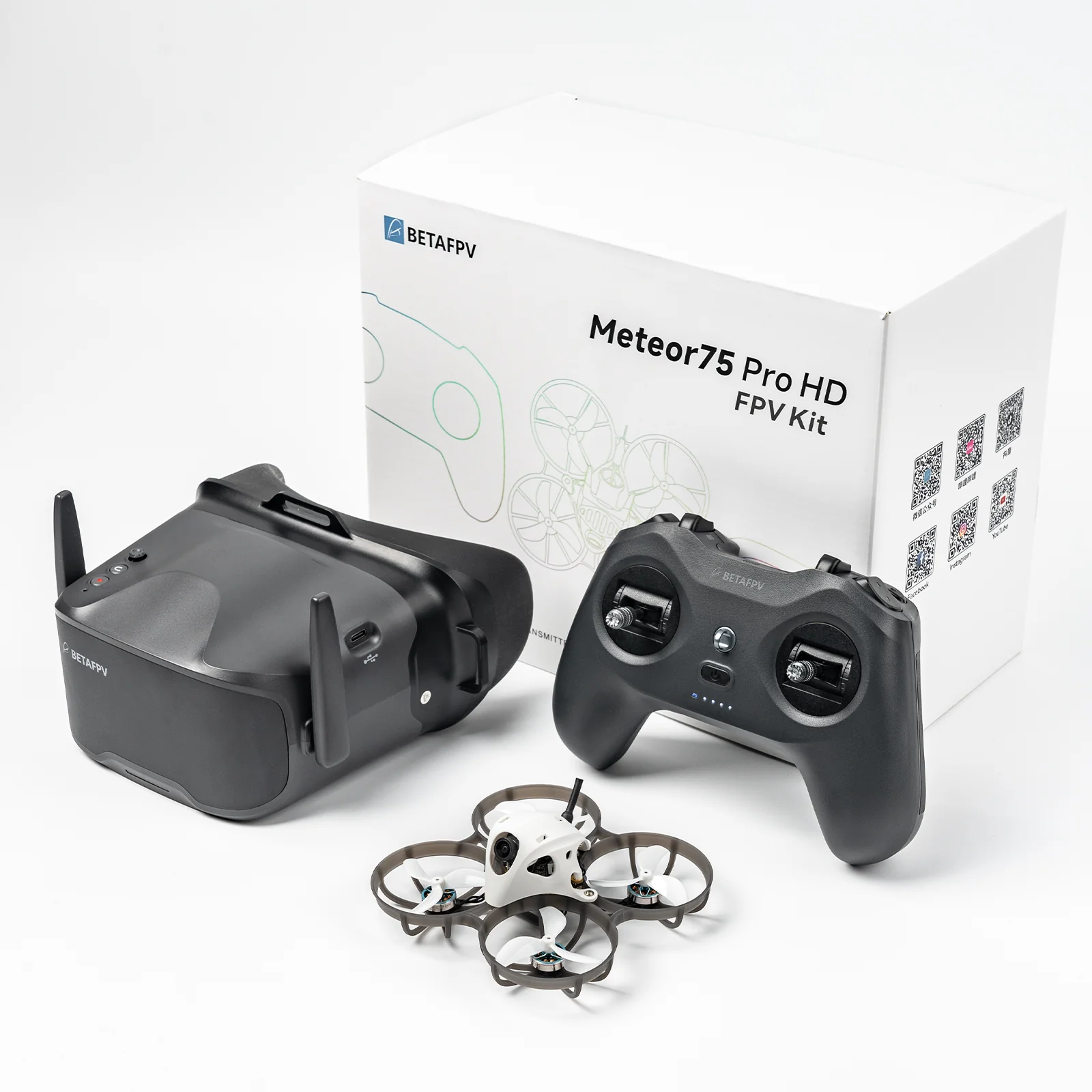

Package

• 1 * Meteor75 Pro P1 Brushless Whoop Quadcopter
• 1 * LiteRadio 4 SE Radio Transmitter
• 1 * VR04 HD FPV Goggles
• 2 * 18650 2600mAh Battery
• 2 * LAVA II 1S 580mAh Battery
• 1 * BT2.0 1S Battery Charger and Voltage Tester
• 1 * USB-C Cable

• 1 * USB-C Adapter
• 1 * 4Pin Adapter Cable
• 4 * Gemfan 45mm 3-Blade Props (1.5mm Shaft)
• 1 * Spare Frame
• 1 * Accessories for Canopy

• 1 * Cross Screwdriver
• 1 * Portable Storage Bag
• 1 * User Manual for Meteor75 Pro P1
• 1 * User Manual for Goggles
• 1 * User Manual for Radio Transmitter
