Meteor75 Pro II Brushless Whoop Frame

The Meteor75 Pro II Frame is a next-generation whoop frame designed for superior flight performance, durability, and ease of use. Featuring optimized aerodynamics with arm braces refined from 6 to 5 and a curved whoop duct design, it reduces weight and air resistance for improved flight efficiency. With simplified installation through four shock-absorbing mounting holes and seamless Canopy II compatibility, the frame delivers stable, jello-free footage and effortless maintenance. Weighing only 5.80g—nearly 2g lighter than the previous version—and built tough to withstand crashes, the Meteor75 Pro II Frame offers an agile flying experience and exceptional durability, making it the ideal choice for both indoor and outdoor flights.

Bullet Points

• Optimized Derodynamics: Arm braces refined from 6 to 5 and curved whoop duct reducing weight and air resistance for improved flight efficiency.
• Simplified Installation: Four shock-absorbing mounting holes with Canopy II compatibility ensure easy assembly, quick maintenance, and stable footage.

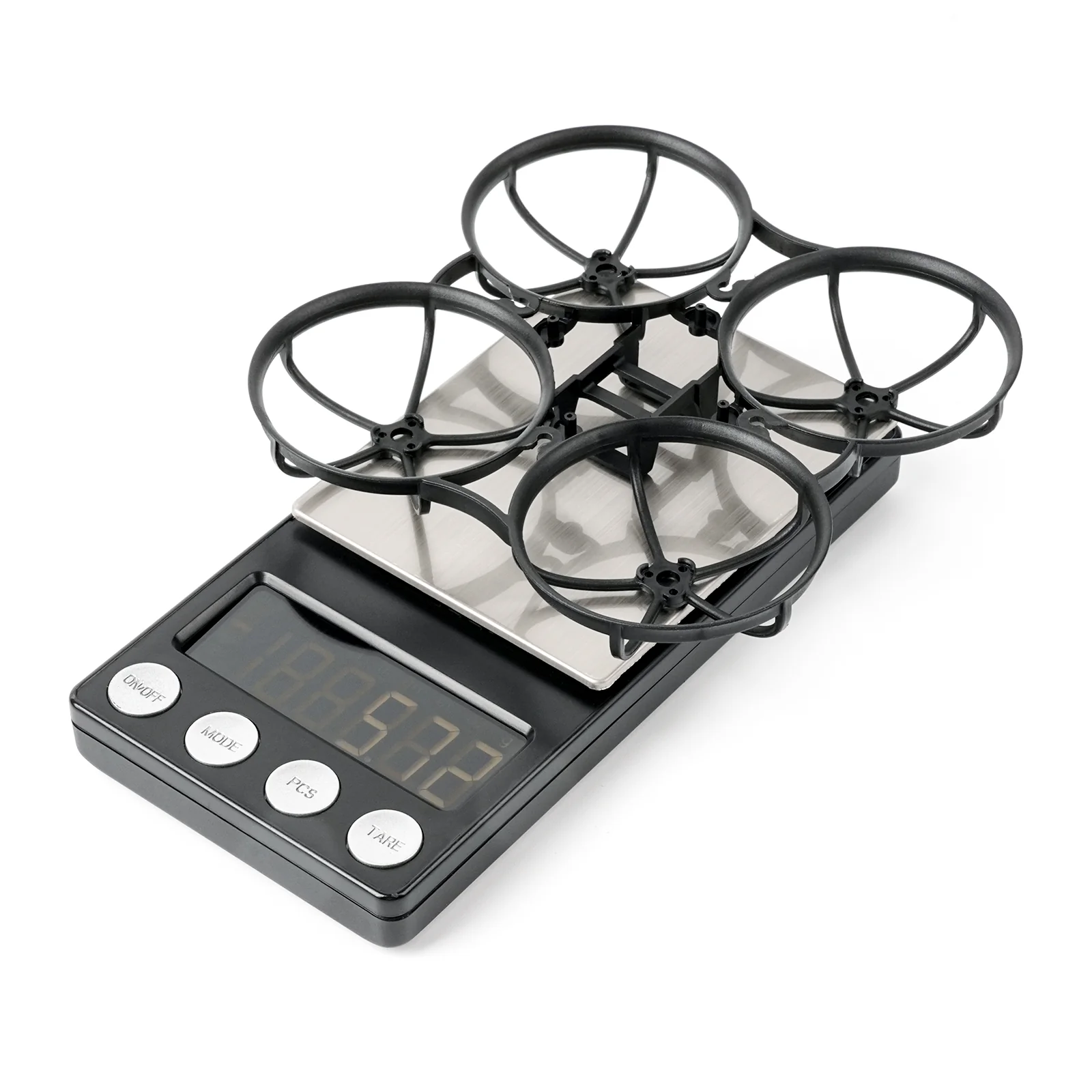

• Lightweight Design: Weighing only 5.80g—nearly 2g lighter than the previous version—for a more responsive and agile flight experience.
• Exceptional Durability: Built tough to withstand crashes, so you can get back in the air quickly and keep flying with confidence.

Specifications

• Item: Meteor75 Pro II Brushless Whoop Frame
• Material: PP
• Wheelbase: 80mm
• Weight: 5.80g

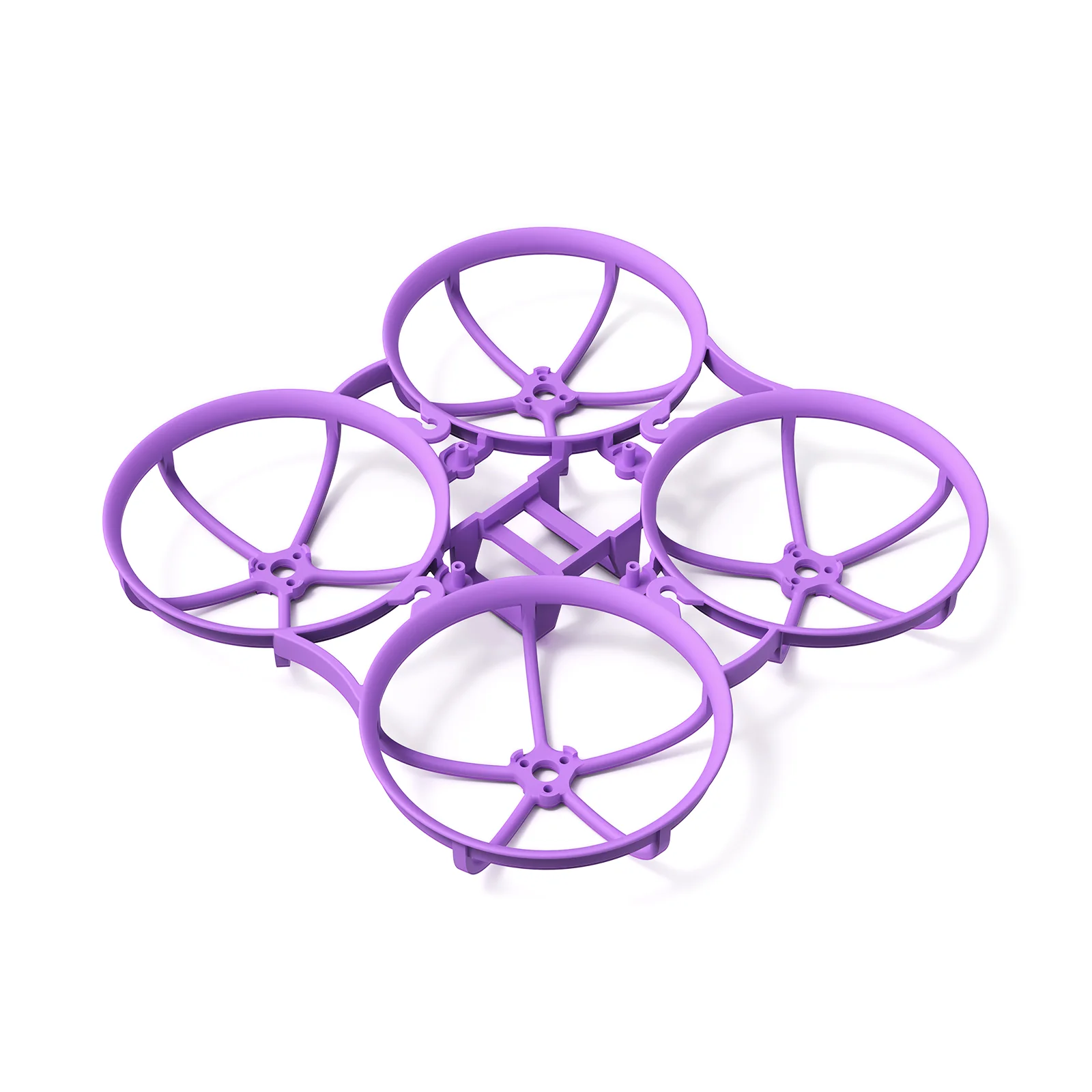

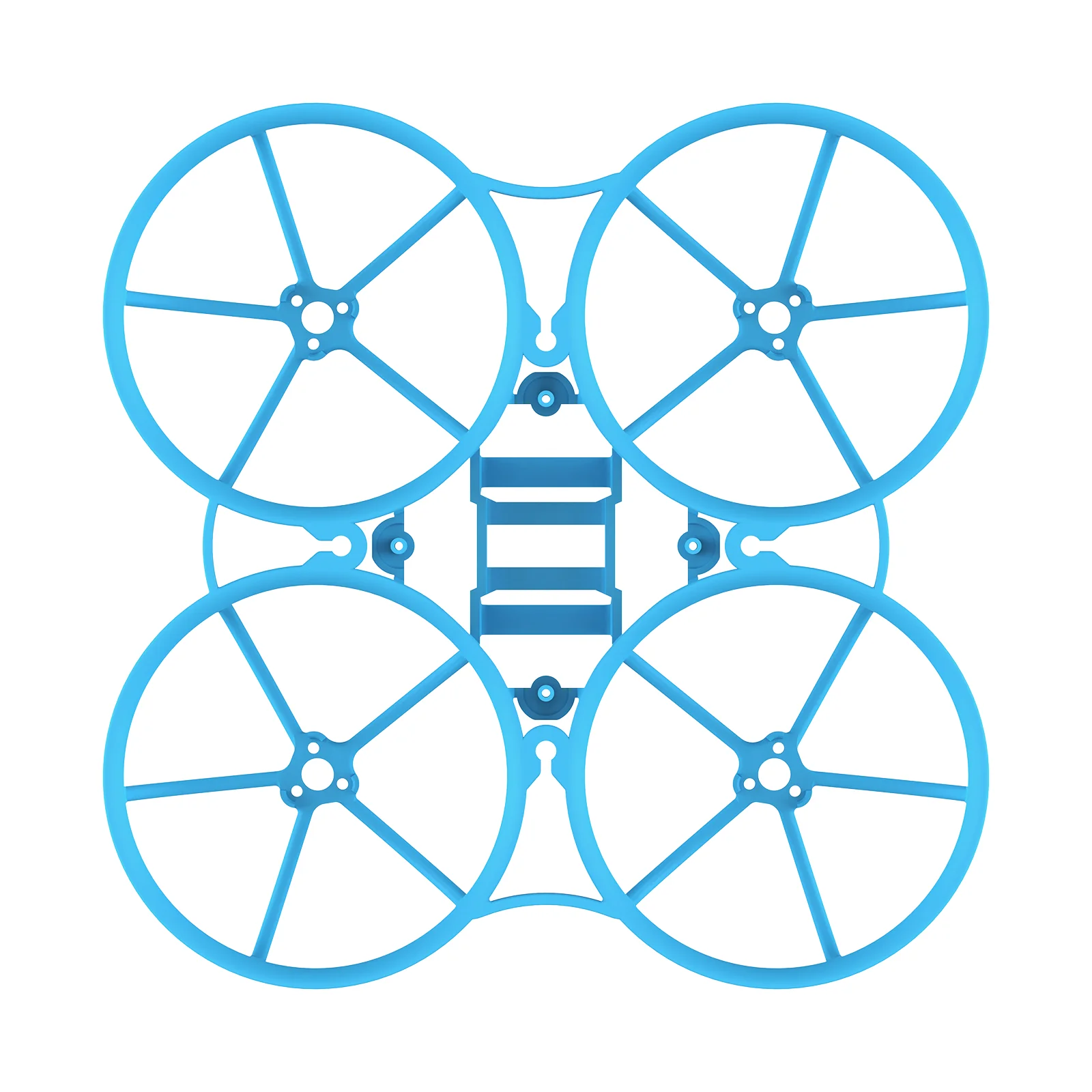

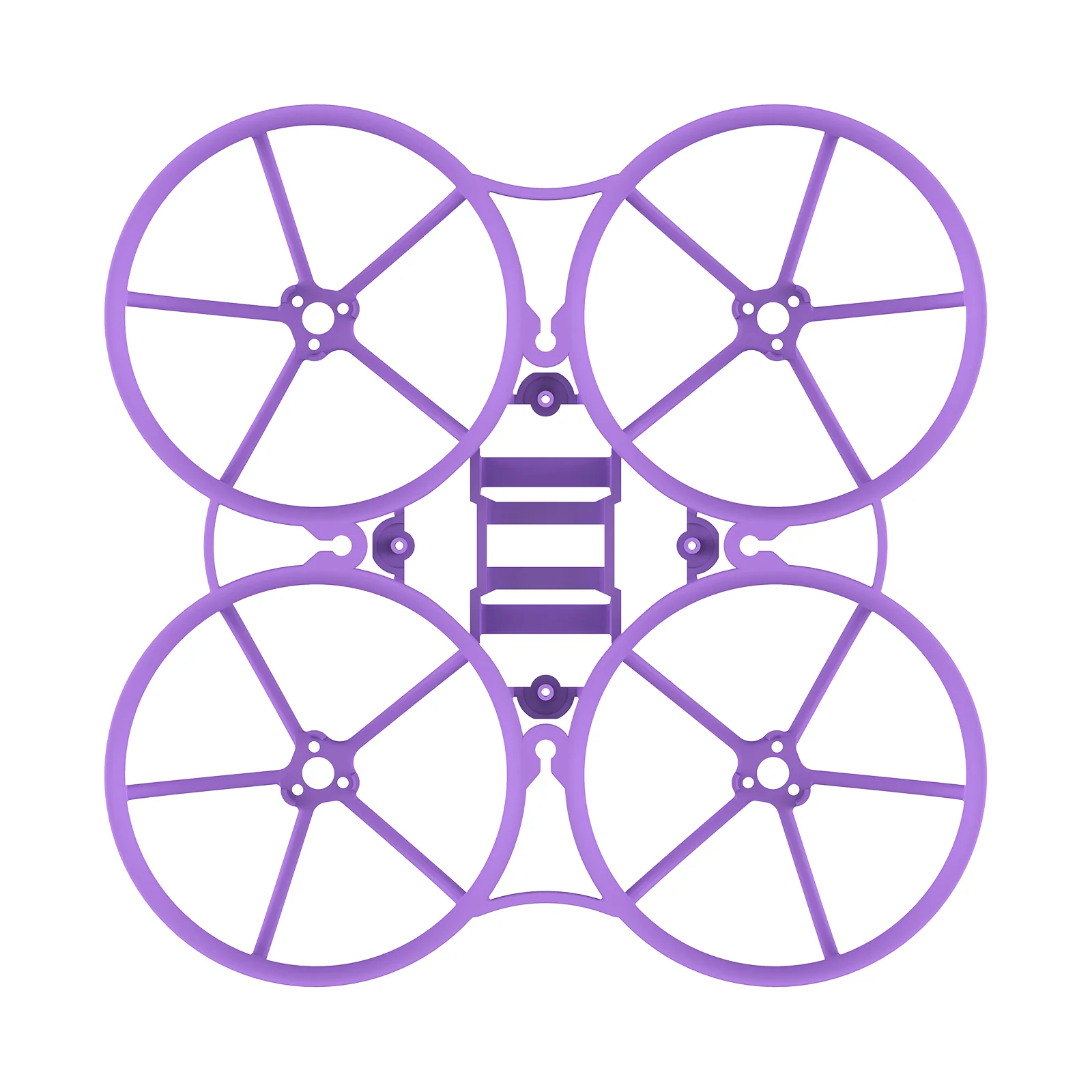

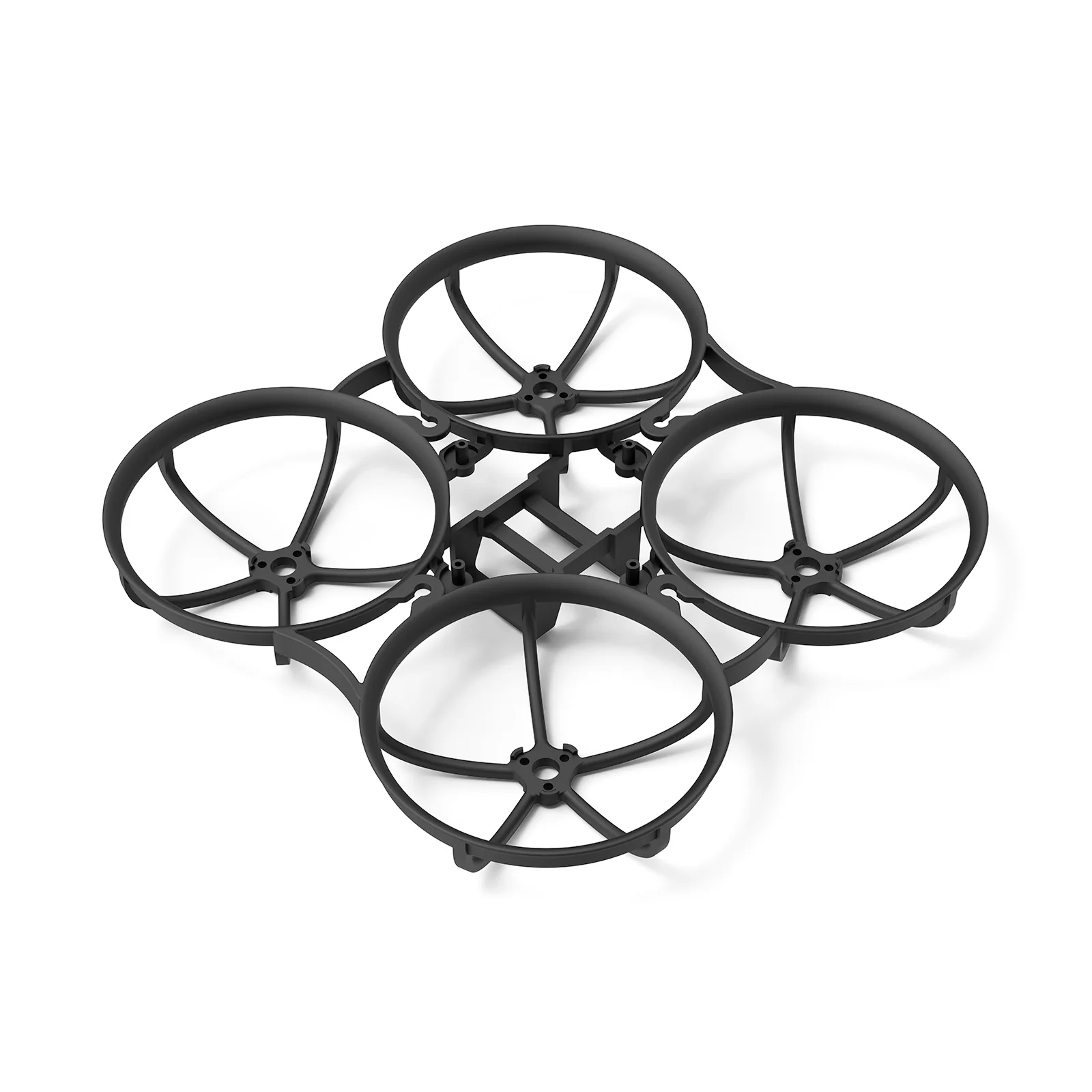

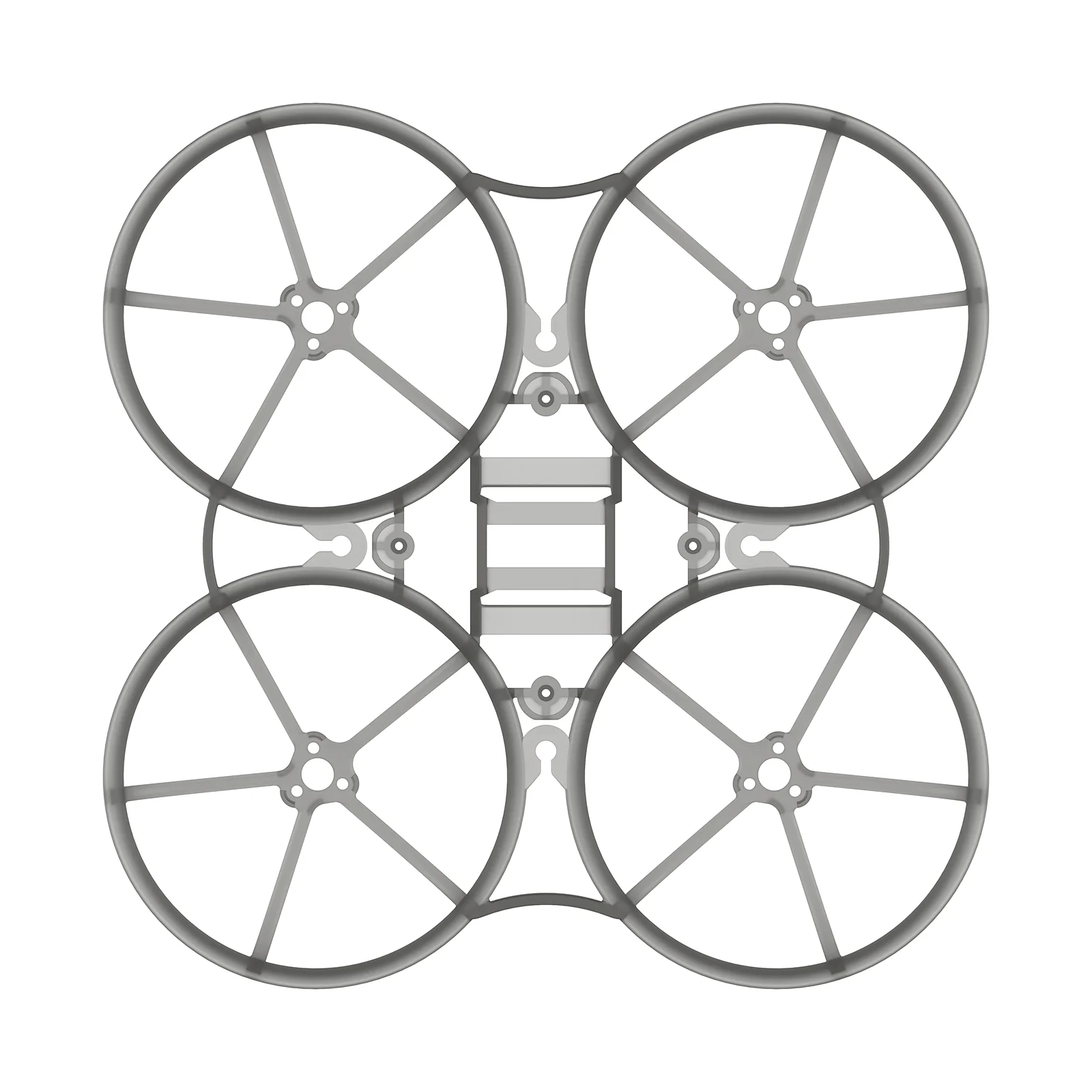

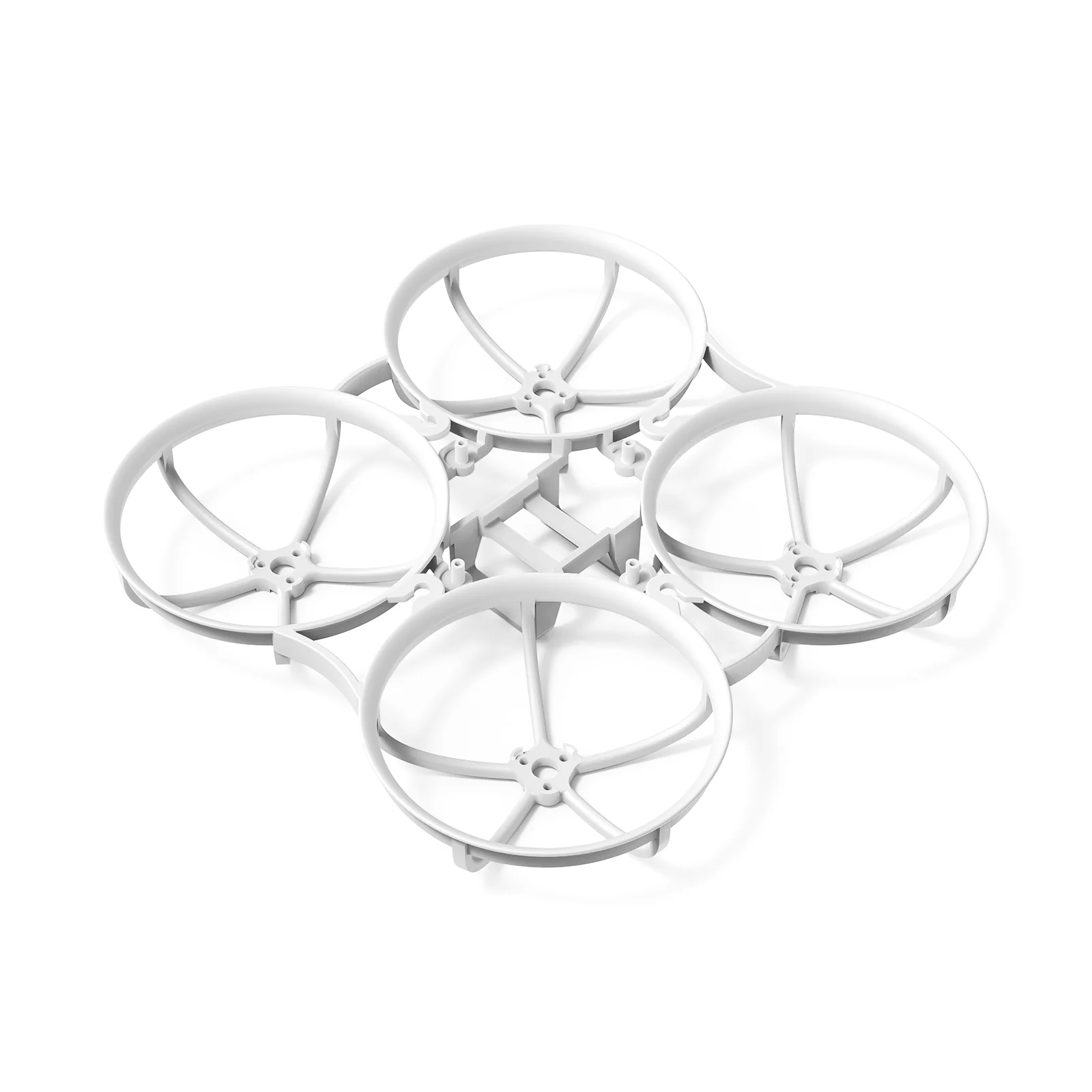

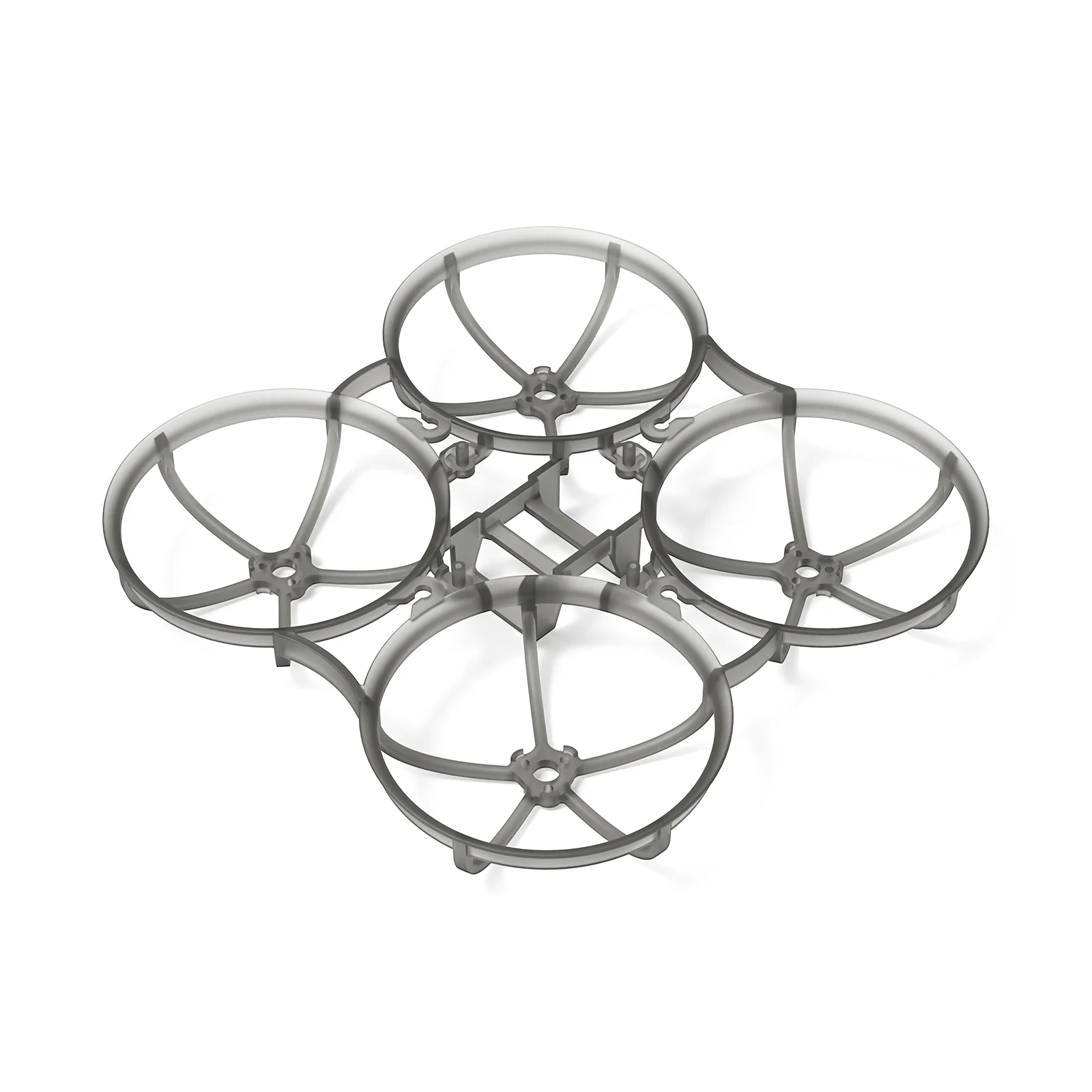

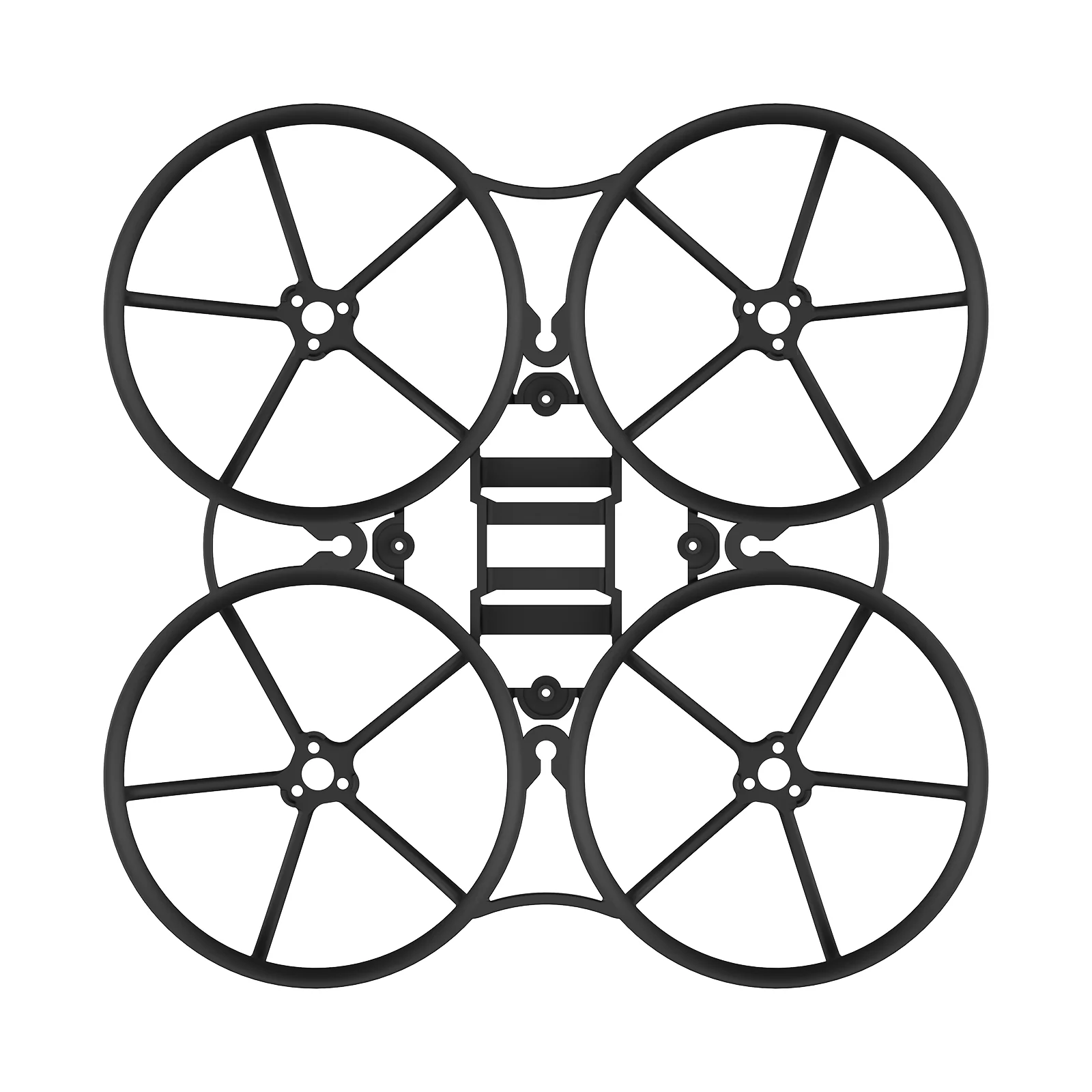

• Color: Transparent gray, black, white, blue, purple
• Motor Mounting Hole: 3-M1.4-φ6.6mm
• FC Mounting Hole: 26*26mm
• Battery Slot: 16.1*6.3mm
• Dimensions: 108.5*108.5*16.2mm

Diagram

Optimized Aerodynamics

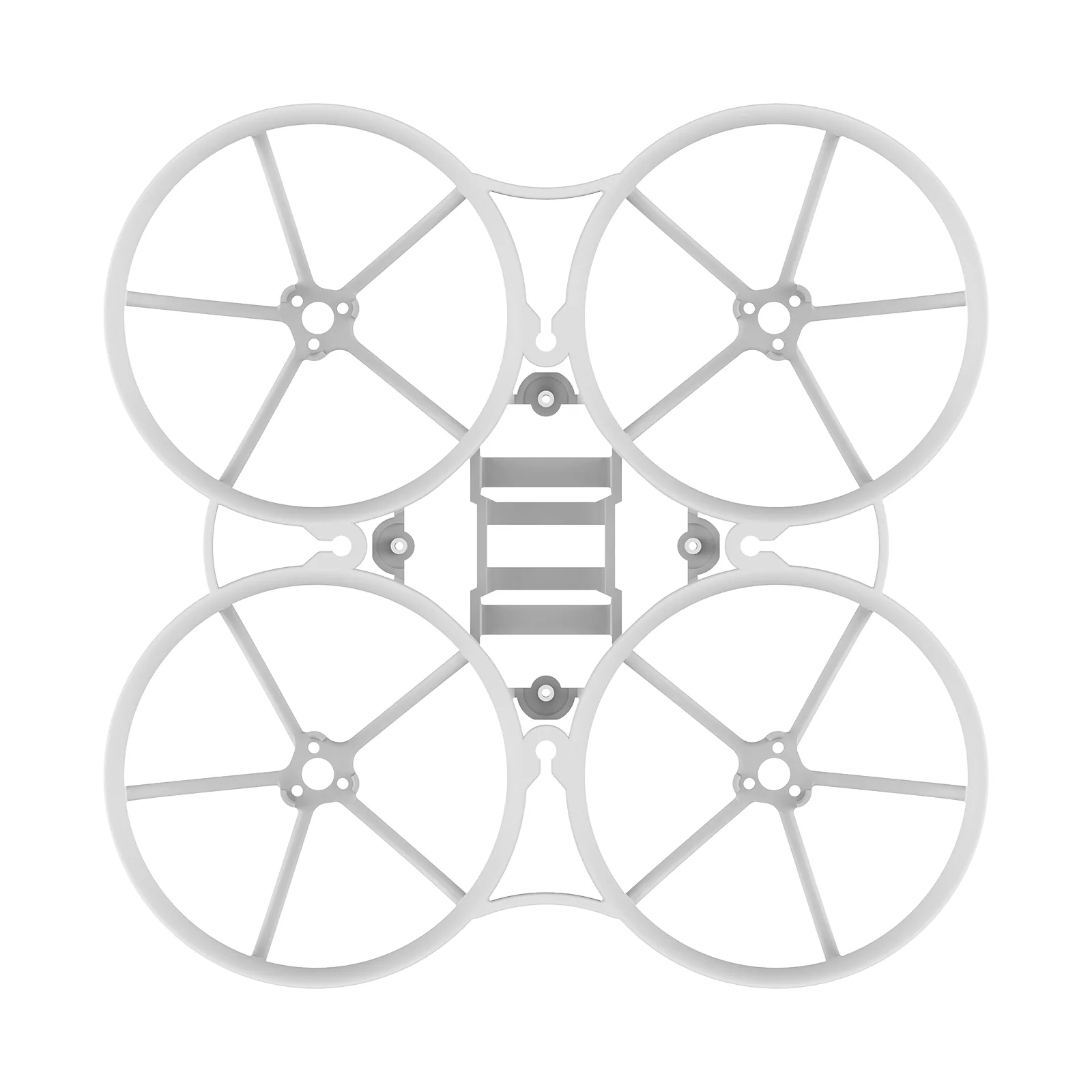

The arm braces have been refined from 6 to 5, reducing weight while maintaining structural integrity. The whoop duct has been aerodynamically optimized to minimize air resistance, resulting in improved flight efficiency and overall performance. With a total weight of only 5.80g—nearly 2g lighter than the previous version—it delivers a noticeably lighter and more responsive flight experience for Meteor75 Pro II.

Simple Installation & Unmatched Durability

Four new installation holes for shock-absorbing balls, paired with the Canopy II for O4 Air Unit, simplify both installation and removal while delivering stable, jello-free footage performance. This durable and low-maintenance design makes the Meteor75 Pro II Frame ideal for both indoor and outdoor flight environments.

Meteor75 Pro II Frame vs. Meteor75 Pro Frame

	Meteor75 Pro II Frame	Meteor75 Pro Frame
Wheelbase	80mm	80.8mm
Duct Diameter	47mm	47.9mm
Duct Height	4.8mm	5.8mm
Arm Braces	5	6
Screw Protection Structure	Supported	-
Motor Screws	M1.4*3mm	M1.4*4mm
Motor Fixed Slot	Supported
Propellers	45mm props
Battery Slot Size	16.1*6.3mm	16.7*6.3mm
Battery	LAVA II 1S 480mAh/580mAh/680mAh
Weight	5.80g	7.73g

Recommended Parts

• Motors: 1102 Freestyle Brushless Motors (2026)
• Propellers: GF 1811 3-Blade Props, GF 45mm 3-Blade Props
• FC: Matrix 1S 3IN1/4IN1, Matrix 1S 5IN1 II, Matrix 1S 5IN1
• Batteries: LAVA II 1S 480mAh/580mAh/680mAh

• Canopy: Canopy II for O4 Air Unit, Canopy for O4 Air Unit, Air II Canopy, Micro Canopy
• Screws: Meteor Series Motor Fixing Screws Pack (40PCS)


Package

• 1 * Meteor75 Pro II Brushless Whoop Frame
